| Brand Name : | HKT-Robot |
| Model Number : | HCMAS0-040-5V |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 1-4 Weeks |

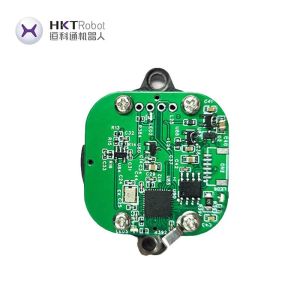

Servo Motor Encoder is a versatile encoder interface especially designed for servo motors. It features signal format of serial communication protocol, insulation resistance of 50MΩ, baud rate of 2.5Mbps, main supply current consumption (typical) of 72mA and communication specification of RS485.
The Servo Motor Encoder is ideal for applications where high accuracy, reliable performance and easy integration are required. It ensures smooth and reliable operation for servo motors with its superior signal format, insulation resistance, baud rate, main supply current consumption and communication specification.
1.Exceptionally Slim Design at Only 15.5mm Thickness: This
ultra-thin configuration allows for seamless installation in
confined spaces, offering a compact yet highly efficient solution.
The installation process is remarkably swift, taking just 80
seconds to complete.
2.Precise and Consistent Repositioning: With a remarkable repeated
positioning accuracy of less than ±5 arcseconds, this system
ensures reliable and exact repositioning for applications demanding
utmost precision and consistency.
3.Versatile RS485 Interface Supporting Multiple Protocols: Equipped
with an RS485 interface, this system boasts compatibility with a
wide range of communication protocols. This flexibility facilitates
smooth integration into diverse network environments.
4.Enhanced Bidirectional Asynchronous Serial Communication: Featuring bidirectional asynchronous serial communication capabilities, this system offers a remarkable data precision of up to 17 bits in a single circle (extending up to 23 bits) or 16 bits in multi-circuit configurations, allowing for comprehensive data transmission and reception.
| Property | Value |
Resolution | Lap value 17 bits (up to 23 bits) |
Communication Specification | RS485 |
Baud Rate | 2.5Mbps |
Signal Format | Serial Communication Protocol |
Supply Voltage | 5 V ± 5% |
Main Supply Current | 72mA |
Differential Output Level | High level Voh≥3.5V Low level Vol≤1.7V |
Insulation Resistance | 50MΩ |
Along Time | 100 ns |
EMC Test | IEC61000-4 |
Operating Temperature | -10℃ to 105℃ |
Relative Humidity | 90%RH (Dew free) |
Class of Protection | Motor rear cover protection |
Impact Resistance | 980m/s2, 11ms; Three shocks in each direction, a total of 18 |
Vibration Resistance | Between 10 and 55Hz, maintain the amplitude of 1.5mm; Between 55 and 2000Hz, the acceleration is 98m/s2; XYZ 2 hours per axis for a total of 6 hours. |
|
|
