Shenzhen Hengketong Robot Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | HKT-Robot |
| Model Number : | HCMAM0-040-5V |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 1-4 Weeks |

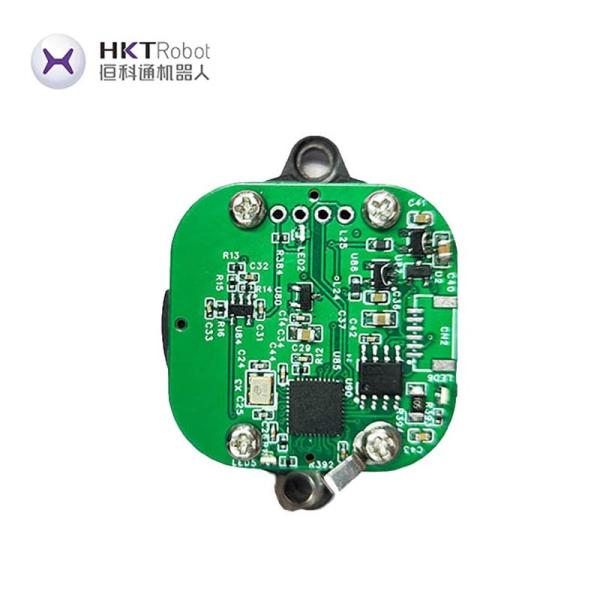

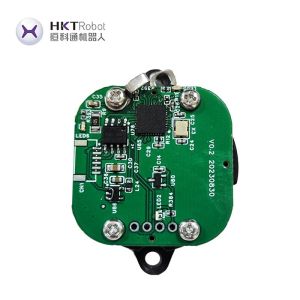

The Servo Motor Encoder is a highly reliable, durable and accurate incremental encoder for motion control applications. It has a communication specification of RS485 and a baud rate of 2.5Mbps, and its main supply current consumption is typically 72mA. It supports a serial communication protocol and has an insulation resistance of 50MΩ. This encoder features an encoder interface for communication and an encoder interface protocol for data transfer. It is designed to provide high resolution and accuracy in a wide range of motion control applications.
1.Advanced Bidirectional Asynchronous Serial Communication:
Employing bidirectional asynchronous serial communication, this
system achieves impressive data precision. It can deliver data
accuracy of up to 17 bits in a single circle (expandable to an
impressive 23 bits) or 16 bits in multi-circuit setups, enabling
comprehensive data transmission and reception.
2.Streamlined Ultra-Thin Design for Efficient Installation:
Featuring a sleek and thin design, this system simplifies and
expedites the installation process, making it suitable for rapid
deployment across various applications.
3.Enhanced System Rigidity with No Shrapnel Connections: The
absence of shrapnel connections enhances the system's rigidity,
contributing to its stability and durability in demanding
operational scenarios.
4.Time-Saving One-Click Debugging: With one-click debugging functionality, this system simplifies the calibration and configuration process, saving valuable time and alleviating concerns associated with setup and fine-tuning.
| Property | Value |
| Resolution | Lap value 17 bits (up to 23 bits) |
| Communication Specification | RS485 |
| Baud Rate | 2.5Mbps |
| Signal Format | Serial Communication Protocol |
| Supply Voltage | 5 V ± 5% |
| Main Supply Current | 72mA |
| Differential Output Level | High level Voh≥3.5V Low level Vol≤1.7V |
| Insulation Resistance | 50MΩ |
| Along Time | 100 ns |
| EMC Test | IEC61000-4 |
| Operating Temperature | -10℃ to 105℃ |
| Relative Humidity | 90%RH (Dew free) |
| Class of Protection | Motor rear cover protection |
| Impact Resistance | 980m/s2, 11ms; Three shocks in each direction, a total of 18 |
| Vibration Resistance | Between 10 and 55Hz, maintain the amplitude of 1.5mm; Between 55 and 2000Hz, the acceleration is 98m/s2; XYZ 2 hours per axis for a total of 6 hours. |
|
|
